How do the air conditioner capacitor work?

Air conditioner capacitor is a capacitor used for both the compressor and the fan in an air conditioning system. For smaller systems, these motors are both single phase. For larger systems, they may use a three phase compressor and a single phase fan, or even both a three phase compressor and fan.

usually we could buy single or dual type air conditioner capacitor.there have a special type combined air conditioner capacitor, Turbo®200 made from AmRad capacitor.( total of 67.5 microfarads (mfd), with taps at 2.5mfd, 5mfd, another 5mfd, 10mfd, 20mfd and 25mfd.)

A single unit run capacitor is used to continuously adjust current or phase shift to a motor’s windings in an effort to optimise the motor’s torque and efficiency performance. All run capacitors are designed for continuous duty, and as a result, have a much lower failure rate than start capacitors. A single unit air conditioner capacitor will have 2 connections and will be dedicated to optimising current on one motor.

Dual run air conditioning capacitors are 2 run capacitors in one case. They have nothing else that makes them electrically special. They generally have connections marked “C” for “common”, “H” or “Herm” for “Hermetic Compressor,” and “F” for “Fan.” They will also have 2 different capacitor ratings for the 2 different parts. You might see 40/5 MFD, meaning that one side is 40 microfarads (measurement of capacitance), and the other side is 5 microfarads. The smaller value will always be connected to the fan. The larger connection will always be connected to the compressor.

The dual run air conditioning capacitor design’s only advantage is that it comes in a small package with only 3 connections. There is no other difference. In a pinch and even as a permanent solution, if there is enough space for mounting, using two separate run capacitors in place of your original dual run motor capacitor is an acceptable practice.


Feature:

1) Very small dissipation factor,small inheterent temperature rise
2) High insulation resistance
3) Good capacitance stability
4) Excellent self-healigh property
5) Safety and hight reliability due to flame reatardant plastic or metal case enclosure,flame retardant opoxy resin endfill.
6) It is applicable for the starting and running of AC single-phase motor with 50~60Hz frequency.
7) Special requirment can be made at the request of customers.
8) Class P2 Explosion-proof


Specification:

Capacitance Range 2μF – 100μF
Rated Voltage 250Vac – 540VAC(50/60Hz)
Capacitance Tolerance ±5%
Loss Tangent Tgδ≤0.002(50Hz-100Hz)
Standard Temperature 70℃,85℃,105℃
Climate Class 25/70/21,40/85/21
Examine Voltage Between derivation head AC≥2.00Un 2S NO Breakdown
Between derivation head and shell AC≥2000V 2S NO Breakdown
Insulation Resistance Between derivation head Rj·C≥3000MΩ.μF
Between derivation head and shell Rj≥1000 MΩ
Security Level P2
Executing Standard GB/T3667.1-2005 IEC60252-1:2001

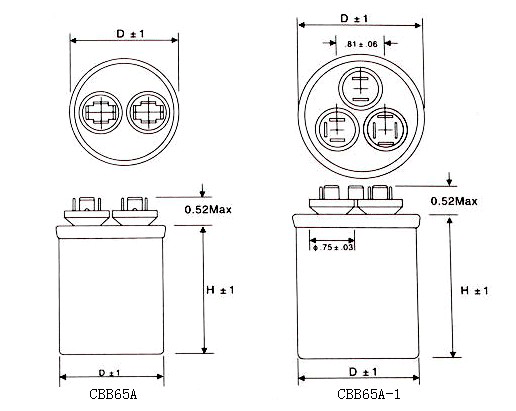

Ⅰ: Round metal can Single and dual type Air conditioner capacitor
Round metal can Single and dual type Air conditioner capacitor

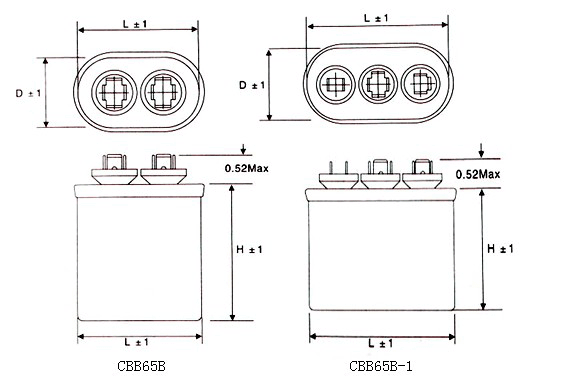

Ⅱ: Oval metal can Single and dual type Air conditioner capacitor
Oval metal can Single and dual type Air conditioner capacitor


Dimensions:

Ⅰ: Single type air conditioner capacitor

Capac-
itance
Round Can
Oval Can
370 VAC – 400 VAC
440 VAC – 450 VAC
370 VAC – 400 VAC
440 VAC – 450 VAC
D
(mm)
D
(inch)
H
(mm)
H
(inch)
D
(mm)
D
(inch)
H
(mm)
H
(inch)
L
(mm)
L
(inch)
B
(mm)
B
(inch)
H
(mm)
H
(inch)
L
(mm)
L
(inch)
B
(mm)
B
(inch)
H
(mm)
H
(inch)
2μF
42
1.65″
60
2.36″
42
1.65″
60
2.36″
50
1.97″
32
1.26″
60
2.36″
50
1.97″
32
1.26″
60
2.36″
3μF
42
1.65″
60
2.36″
42
1.65″
60
2.36″
50
1.97″
32
1.26″
60
2.36″
50
1.97″
32
1.26″
60
2.36″
5μF
42
1.65″
60
2.36″
42
1.65″
60
2.36″
50
1.97″
32
1.26″
60
2.36″
50
1.97″
32
1.26″
60
2.36″
7.5μF
42
1.65″
60
2.36″
42
1.65″
60
2.36″
50
1.97″
32
1.26″
60
2.36″
50
1.97″
32
1.26″
60
2.36″
10μF
42
1.65″
70
2.76″
42
1.65″
70
2.76″
50
1.97″
32
1.26″
60
2.36″
50
1.97″
32
1.26″
60
2.36″
12.5μF
42
1.65″
70
2.76″
42
1.65″
80
3.15″
50
1.97″
32
1.26″
60
2.36″
71
2.80″
45
1.77″
80
3.15″
15μF
42
1.65″
80
3.15″
42
1.65″
80
3.15″
50
1.97″
32
1.26″
60
2.36″
71
2.80″
45
1.77″
80
3.15″
17.5μF
42
1.65″
80
3.15″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
20μF
45
1.77″
80
3.15″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
22.5μF
45
1.77″
80
3.15″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
90
3.54″
25μF
45
1.77″
90
3.54″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
90
3.54″
27.5μF
45
1.77″
90
3.54″
50
1.97″
100
3.94″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
90
3.54″
30μF
50
1.97″
100
3.94″
50
1.97″
100
3.94″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
32.5μF
50
1.97″
100
3.94″
50
1.97″
100
3.94″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
35μF
50
1.97″
100
3.94″
50
1.97″
110
4.33″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
37.5μF
50
1.97″
100
3.94″
50
1.97″
110
4.33″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
110
4.33″
40μF
50
1.97″
110
4.33″
50
1.97″
110
4.33″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
110
4.33″
45μF
50
1.97″
110
4.33″
50
1.97″
120
4.72″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
110
4.33″
50μF
50
1.97″
110
4.33″
50
1.97″
120
4.72″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
110
4.33″
55μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
60μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
130
5.12″
65μF
55
2.17″
130
5.12″
60
2.36″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
130
5.12″
70μF
60
2.36″
120
4.72″
60
2.36″
120
4.72″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
80μF
60
2.36″
120
4.72″
60
2.36″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
100μF
60
2.36″
120
4.72″
60
2.36″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″


Ⅱ: Dual type air conditioner capacitor

Capac-
itance
Round Can
Oval Can
370 VAC – 400 VAC
440 VAC – 450 VAC
370 VAC – 400 VAC
440 VAC – 450 VAC
D
(mm)
D
(inch)
H
(mm)
H
(inch)
D
(mm)
D
(inch)
H
(mm)
H
(inch)
L
(mm)
L
(inch)
B
(mm)
B
(inch)
H
(mm)
H
(inch)
L
(mm)
L
(inch)
B
(mm)
B
(inch)
H
(mm)
H
(inch)
15+1.5μF
45
1.77″
80
3.15″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
15+3μF
45
1.77″
80
3.15″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
15+5μF
45
1.77″
80
3.15″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
20+1.5μF
45
1.77″
80
3.15″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
20+3μF
45
1.77″
90
3.54″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
20+5μF
45
1.77″
90
3.54″
50
1.97″
90
3.54″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
25+1.5μF
45
1.77″
90
3.54″
50
1.97″
90
3.54″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
25+2.5μF
45
1.77″
90
3.54″
50
1.97″
90
3.54″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
25+3μF
45
1.77″
90
3.54″
50
1.97″
90
3.54″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
25+4μF
45
1.77″
90
3.54″
50
1.97″
90
3.54″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
25+5μF
45
1.77″
90
3.54″
50
1.97″
90
3.54″
71
2.80″
45
1.77″
80
3.15″
71
2.80″
45
1.77″
80
3.15″
30+1.5μF
50
1.97″
100
3.94″
50
1.97″
100
3.94″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
30+2.5μF
50
1.97″
100
3.94″
50
1.97″
100
3.94″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
30+3μF
50
1.97″
100
3.94″
50
1.97″
100
3.94″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
30+4μF
50
1.97″
100
3.94″
50
1.97″
100
3.94″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
30+5μF
50
1.97″
100
3.94″
50
1.97″
100
3.94″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
35+1.5μF
50
1.97″
100
3.94″
50
1.97″
100
3.94″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
35+2.5μF
50
1.97″
100
3.94″
50
1.97″
100
3.94″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
35+3μF
50
1.97″
100
3.94″
50
1.97″
100
3.94″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
35+4μF
50
1.97″
100
3.94″
50
1.97″
100
3.94″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
35+5μF
50
1.97″
100
3.94″
50
1.97″
110
4.33″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
35+6μF
50
1.97″
100
3.94″
50
1.97″
110
4.33″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
40+1.5μF
50
1.97″
110
4.33″
50
1.97″
110
4.33″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
40+2.5μF
50
1.97″
110
4.33″
50
1.97″
110
4.33″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
40+3μF
50
1.97″
110
4.33″
50
1.97″
110
4.33″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
40+4μF
50
1.97″
110
4.33″
50
1.97″
110
4.33″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
40+5μF
50
1.97″
110
4.33″
50
1.97″
110
4.33″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
40+6μF
50
1.97″
110
4.33″
50
1.97″
110
4.33″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
40+7.5μF
50
1.97″
110
4.33″
50
1.97″
120
4.72″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
40+10μF
50
1.97″
110
4.33″
50
1.97″
120
4.72″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
45+1.5μF
50
1.97″
110
4.33″
50
1.97″
120
4.72″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
45+2.5μF
50
1.97″
110
4.33″
50
1.97″
120
4.72″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
45+3μF
50
1.97″
110
4.33″
50
1.97″
120
4.72″
71
2.80″
45
1.77″
90
3.54″
71
2.80″
45
1.77″
90
3.54″
45+4μF
50
1.97″
110
4.33″
50
1.97″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
45+5μF
50
1.97″
110
4.33″
50
1.97″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
45+6μF
55
2.17″
120
4.72″
55
2.17″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
50+1.5μF
55
2.17″
120
4.72″
55
2.17″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
50+2.5μF
55
2.17″
120
4.72″
55
2.17″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
50+3μF
55
2.17″
120
4.72″
55
2.17″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
50+4μF
55
2.17″
120
4.72″
55
2.17″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
50+5μF
55
2.17″
120
4.72″
55
2.17″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
50+6μF
55
2.17″
120
4.72″
55
2.17″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
50+7.5μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
50+10μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
55+1.5μF
55
2.17″
120
4.72″
55
2.17″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
55+2.5μF
55
2.17″
120
4.72″
55
2.17″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
55+3μF
55
2.17″
120
4.72″
55
2.17″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
55+4μF
55
2.17″
120
4.72″
55
2.17″
120
4.72″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
55+5μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
55+6μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
55+7.5μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
55+10μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
60+1.5μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
60+2.5μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
60+3μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
60+4μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
110
4.33″
71
2.80″
45
1.77″
110
4.33″
60+5μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
60+6μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
60+7.5μF
60
2.36″
130
5.12″
60
2.36″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
60+10μF
60
2.36″
130
5.12″
60
2.36″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
65+1.5μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
65+3μF
55
2.17″
130
5.12″
55
2.17″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
65+5μF
60
2.36″
130
5.12″
65
2.56″
135
5.31″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
65+7.5μF
60
2.36″
130
5.12″
65
2.56″
135
5.31″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
70+5μF
60
2.36″
130
5.12″
65
2.56″
135
5.31″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
80+5μF
60
2.36″
130
5.12″
65
2.56″
135
5.31″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
80+7.5μF
60
2.36″
130
5.12″
65
2.56″
135
5.31″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″
80+10μF
60
2.36″
130
5.12″
65
2.56″
135
5.31″
71
2.80″
45
1.77″
130
5.12″
71
2.80″
45
1.77″
130
5.12″

question if you could not find your item of above, you could contact me by email at sales@china-capacitores.com, Special specification are available on request.

Tags: ,
