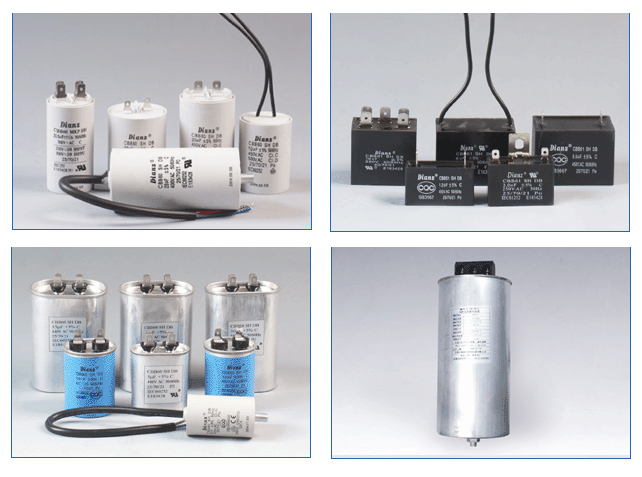

Dianz CBB60 CBB61 CBB65 Motor Run Capacitors

04.9.2013 in Buy Capacitors by admin

Dianz capacitor is the professional manufacturer of capacitor and complete set equipment. The main products include: BSMJ/BZMJ/BCMJ series self recovery low voltage parallel capacitor and its complete set compensation appliance, CBB motor capacitor, explosion protection capacitor and P2-grade safe film explosion protection capacitor, CH series compound medium capacitor, LG type dry RC over voltage absorber and the latest MKPS self recovery parallel capacitor and other capacitors for special purpose.

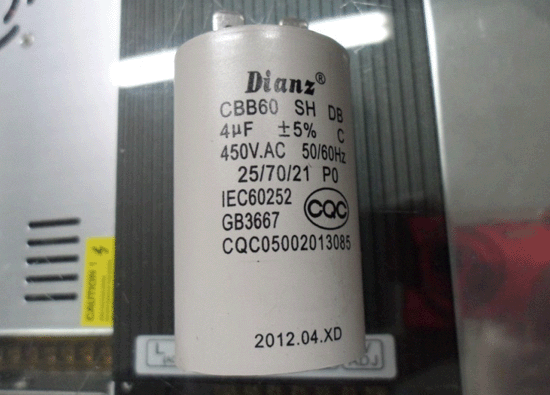

DianZ CBB60 ( plastic can) AC motor capacitor

wide capacity and voltage range; small size; rated work life, excellent self recovery performance; stable electric capacity; poison free, non-leakage and liquid materials, profit environmental protection. Apply to motor, air conditioner, refrigerator, washer, electric fan and oven, etc.

1.electric capacity；±5%
2.rated voltage：250VAC～550VAC
3.rated frequency：50/60Hz single phase
4.voltage bearing：electrode to electrode 1.75Un，2s ； electrode to shell 2000 VAC，2s
5.wasting angle tangent：≤0.2%
6.insulation resistor：terminal to terminal≥3000MΩ.μF terminal to shell≥2000MΩ

Outer Size mm D x H

capacity

Rated Voltage

250V

300V

400V

450V

500V

550V

1.0	Φ22×45	Φ22×45	Φ22×45	Φ22×45	Φ22×45	Φ26×45
1.2	Φ22×45	Φ22×45	Φ22×45	Φ22×45	Φ26×45	Φ26×45
1.5	Φ22×45	Φ22×45	Φ22×45	Φ26×45	Φ26×45	Φ26×45
1.8	Φ22×45	Φ22×45	Φ22×45	Φ26×45	Φ26×45	Φ30×45
2.0	Φ22×45	Φ22×45	Φ26×45	Φ26×45	Φ30×45	Φ30×45

2.5	Φ22×45	Φ22×45	Φ26×45	Φ30×45	Φ30×45	Φ34×45
3.0	Φ22×45	Φ26×45	Φ26×45	Φ30×45	Φ34×45	Φ34×45
3.5	Φ22×45	Φ26×45	Φ30×45	Φ30×45	Φ34×45	Φ34×55
4.0	Φ22×45	Φ26×45	Φ30×45	Φ34×45	Φ34×55	Φ34×55
4.5	Φ26×45	Φ30×45	Φ30×45	Φ34×45	Φ34×55	Φ34×70

5.0	Φ26×45	Φ30×45	Φ34×45	Φ34×55	Φ34×55	Φ34×70
6.0	Φ26×45	Φ30×45	Φ34×45	Φ34×55	Φ34×70	Φ36×70
7.0	Φ30×45	Φ34×45	Φ34×55	Φ34×70	Φ34×70	Φ36×70
8.0	Φ30×45	Φ34×45	Φ34×55	Φ34×70	Φ36×70	Φ40×72.5
10	Φ34×45	Φ34×55	Φ34×70	Φ36×70	Φ40×72.5	Φ42×70

12	Φ34×45	Φ34×70	Φ36×70	Φ40×72.5	Φ42×70	Φ45×72.5
14	Φ34×55	Φ34×70	Φ40×72.5	Φ40×72.5	Φ45×72.5	Φ45×92.5
16	Φ34×55	Φ34×70	Φ40×72.5	Φ42×70	Φ45×92.5	Φ45×92.5
18	Φ34×70	Φ36×70	Φ42×70	Φ45×72.5	Φ45×92.5	Φ50×92.5
20	Φ34×70	Φ40×72.5	Φ42×70	Φ42×80	Φ45×92.5	Φ50×92.5

22	Φ34×70	Φ40×72.5	Φ45×72.5	Φ45×92.5	Φ50×92.5	Φ50×92.5
25	Φ36×70	Φ42×70	Φ45×72.5	Φ45×92.5	Φ50×92.5	Φ50×130
30	Φ40×72.5	Φ45×72.5	Φ45×92.5	Φ50×92.5	Φ50×130	–
35	Φ42×70	Φ45×92.5	Φ45×92.5	Φ45×130	Φ50×130	–
40	Φ42×70	Φ45×92.5	Φ45×130	Φ50×130	–	–

45	Φ45×72.5	Φ45×92.5	Φ45×130	Φ50×130	–	–
50	Φ35×124	Φ45×130	Φ50×130	Φ50×130	–	–
55	Φ45×130	Φ45×130	Φ50×130	–	–	–
60	Φ45×130	Φ45×130	Φ50×130

CBB61 AC motor capacitor

1.electric capacity；±5%
2.rated voltage：250VAC～550VAC
3.rated frequency：50/60Hz single phase
4.voltage bearing：electrode to electrode 1.75Un，2s ； electrode to shell 2000 VAC，2s
5.wasting angle tangent：≤0.2%
6.insulation resistance：terminal to terminal≥3000MΩ.μF terminal to shell≥2000MΩ

Outer Size mm D x H

Rated Voltage

250V

300V

400V

450V

500V

550V

1.0	38×13×22	38×13×22	38×13×22	38×13×22	38×16×26	38×16×26
1.2	38×13×22	38×13×22	38×13×22	38×13×22	38×16×26	38×20×30
1.5	38×13×22	38×13×22	38×13×22	38×16×26	38×20×30	38×20×30
1.8	38×13×22	38×13×22	38×16×26	38×16×26	38×20×30	47×18×34
2.0	38×13×22	38×13×22	38×16×26	38×20×30	38×20×30	47×22×34

2.5	38×13×22	38×16×26	38×20×30	38×20×30	47×22×34	47×22×34
3.0	38×13×22	38×16×26	38×20×30	47×18×34	47×22×34	47×28×34
3.5	38×16×26	38×20×30	38×20×30	47×22×34	47×28×34	47×28×34
4.0	38×16×26	38×20×30	47×22×34	47×22×34	47×28×34	47×28×34
4.5	38×20×30	38×20×30	47×22×34	47×28×34	47×28×34	47×28×34

5.0	38×20×30	47×18×34	47×22×34	47×28×34	47×28×34	–
6.0	38×20×30	47×22×34	47×28×34	47×28×34	–	–
7.0	38×20×30	47×22×34	47×28×34	–	–	–
8.0	47×22×34	47×28×34	47×28×34	–	–	–
10	47×22×34	47×28×34	–	–	–	–
15	47×28×34	47×28×34

CBB65 metal can motor run capacitor

1.electric capacity；±5%
2.rated voltage：250VAC～550VAC
3.rated frequency：50/60Hz single phase
4.voltage bearing：electrode to electrode1.75Un，2s ； electrode to shell 2000 VAC，2s
5.wasting angle tangent：≤0.2%
6.insulation resistor：terminal to terminal≥3000MΩ.μF terminal to shell≥2000MΩ

Outer Size 　Dimensions in mm D x H

Capacity

Rated Voltage

250V

300V

400V

450V

500V

550V

3.0	–	–	φ40×50	φ40×50	φ40×50	φ40×60
3.5	–	–	φ40×50	φ40×50	φ40×60	φ40×60
4.0	–	φ40×50	φ40×50	φ40×60	φ40×60	φ40×60
4.5	–	φ40×50	φ40×50	φ40×60	φ40×60	φ40×70

5.0	φ40×50	φ40×50	φ40×60	φ40×60	φ40×60	φ40×70
6.0	φ40×50	φ40×50	φ40×60	φ40×60	φ40×70	φ40×80
7.0	φ40×50	φ40×60	φ40×60	φ40×70	φ40×80	φ40×80
8.0	φ40×50	φ40×60	φ40×60	φ40×70	φ40×80	φ40×85

10	φ40×60	φ40×60	φ40×70	φ40×80	φ40×85	φ45×85
12	φ40×60	φ40×70	φ40×80	φ40×85	φ45×85	φ45×95
14	φ40×60	φ40×70	φ40×80	φ40×85	φ45×85	φ45×95
16	φ40×60	φ40×80	φ40×80	φ40×85	φ45×85	φ45×105

18	φ40×70	φ40×80	φ45×80	φ45×85	φ45×105	φ50×105
20	φ40×70	φ40×80	φ45×85	φ45×95	φ45×105	φ50×105
22	φ40×70	φ40×85	φ45×85	φ45×105	φ50×105	φ50×135
25	φ40×80	φ40×85	φ45×85	φ45×105	φ50×105	φ50×135

30	φ40×80	φ40×95	φ45×105	φ50×105	φ50×135	φ50×145
35	φ40×95	φ40×95	φ50×105	φ50×135	φ50×145	–
40	φ40×95	φ45×105	φ50×105	φ50×135	–	–
45	φ40×105	φ45×105	φ50×135	φ50×145	–	–

50	φ45×110	φ45×135	φ50×135	–	–	–
55	φ45×110	φ45×135	φ50×145	–	–	–
60	φ45×110	φ50×135	φ50×145	–	–	–
65	φ50×105	φ50×135	–	–
